ROS2 Integration

Where This Fits​

This page shows how Atlas timing appears inside ROS2 systems.

Atlas does not replace ROS2.

It provides a deterministic time foundation beneath it.

The Problem: ROS2 Assumes Time Is Already Correct​

ROS2 is a powerful middleware.

But it assumes:

sensor timestamps are already correct

In real systems, they are not.

Sensors operate on independent timing sources:

  • USB cameras introduce jitter
  • LiDAR runs on internal clocks
  • IMU and GNSS drift independently

This leads to:

  • inconsistent timestamps
  • sensor misalignment
  • degraded fusion and SLAM
  • difficult debugging

ROS2 does not solve this.

What Atlas + DSIL Changes​

Atlas introduces a hardware-backed time authority.

DSIL maps all sensor data into that time.

Instead of fixing time inside each driver:

  • Atlas defines system time
  • DSIL aligns all data
  • ROS2 receives consistent timestamps

No driver rewrites required.

What Stays the Same​

You keep your existing ROS2 stack:

  • camera drivers
  • LiDAR drivers
  • IMU drivers
  • GNSS drivers
  • serial nodes

No custom ecosystem required.

What Changes​

The meaning of time becomes deterministic and observable.

Instead of trusting raw timestamps:

  • time is normalized to Atlas time
  • offsets become visible
  • drift becomes measurable
  • synchronization becomes observable

ROS2 now receives:

  • corrected timestamps
  • time offset per sensor
  • drift trend
  • synchronization state
  • timing confidence

Time Becomes Visible in ROS2. This is where Atlas changes everything.

Instead of guessing timing issues, you can see them directly:

/atlas/time_offset/front_camera: -1.1 ms
/atlas/time_offset/lidar: 3.2 ms
/atlas/time_offset/imu: -0.4 ms

And not just offset — behavior over time:

sensor: lidar_top
tier: 2
offset_ms: 3.2
drift_ms_per_sec: 0.02
confidence: high
sync_state: locked

This is the difference:

Without AtlasWith Atlas
“Fusion seems unstable”Offset = +3.2 ms
“Maybe sensor drift?”Drift = 0.02 ms/sec
“Hard to debug”Sync state = locked

Atlas turns invisible timing problems into observable data.

The 3 Timing Tiers in ROS2​

Not all sensors have the same time quality.

DSIL exposes this explicitly.

Tier 1 — Authority Time​

Sensors tied to hardware timing (PPS / trigger / sync).

ROS2 receives:

  • timestamps anchored to hardware events
  • minimal drift
  • highest confidence

Result:

  • strongest fusion accuracy
  • deterministic replay

Tier 2 — Derived Time​

Sensors with observable timing behavior.

DSIL builds a correlation model.

ROS2 receives:

  • corrected timestamps
  • tracked drift
  • stable alignment

Result:

  • practical synchronization without firmware changes

Tier 3 — Transport Time​

Sensors where only arrival time is visible.

DSIL estimates timing behavior.

ROS2 receives:

  • corrected timestamps
  • offset + drift visibility
  • lower confidence

Result:

  • usable timing instead of blind arrival timestamps

Timing Drift (Critical)​

DSIL continuously tracks:

  • offset (current difference)
  • drift (rate of change)

This enables:

  • detection of unstable sensors
  • real-time timing validation
  • better debugging

Mechanics of Synchronization​

DSIL performs timestamp correction using hardware timing events captured by Atlas.

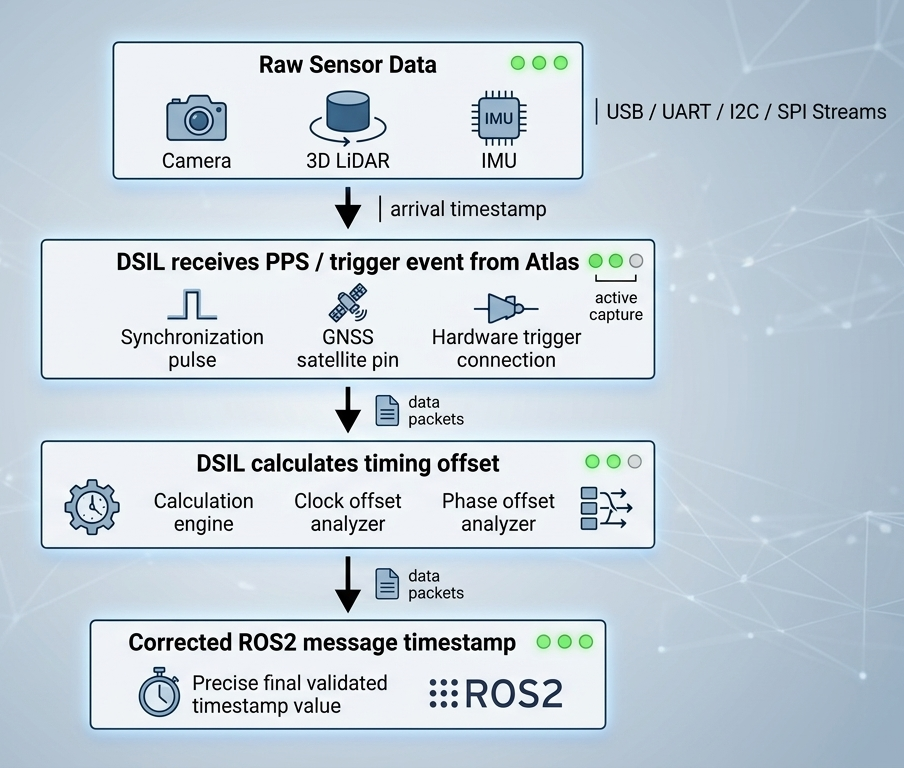

Atlas mechanics of synchronization

Core mapping:

raw sensor arrival time → Atlas hardware timing event

DSIL applies a dynamic offset to ROS2 message headers.

Important:

  • sensor firmware is NOT modified
  • sensor clocks are NOT changed

Compatible with:

  • UVC cameras
  • serial sensors
  • LiDAR drivers
  • standard ROS2 drivers

ROS2 Topics​

Standard Sensor Topics (Unchanged)​

  • /camera/image_raw
  • /imu/data
  • /gps/fix
  • /lidar/points

Atlas Observability Topics​

  • /atlas/time/status
  • /atlas/time/source
  • /atlas/time_offset/<sensor>
  • /atlas/sync/events
  • /atlas/health

Each sensor can expose:

  • sensor name
  • time source tier
  • raw timestamp
  • corrected timestamp
  • current offset
  • drift trend
  • confidence
  • sync state

Example:

sensor: lidar_top
tier: 2
offset_ms: 3.2
drift_ms_per_sec: 0.02
confidence: high
sync_state: locked

ROS2 Topic Mapping​

Atlas DataROS2 TopicMessage Type
IMU telemetry/imu/datasensor_msgs/Imu
GNSS position/gps/fixsensor_msgs/NavSatFix
PPS timing events/atlas/ppsstd_msgs/Bool
Synchronization pulse/atlas/syncstd_msgs/Bool
System health/atlas/healthdiagnostic_msgs/DiagnosticStatus

Atlas integrates directly into:

  • SLAM
  • sensor fusion
  • navigation
  • diagnostics

Quick Start​

Launch DSIL:

ros2 launch atlas_dsil_bridge telemetry.launch.py

List topics:

ros2 topic list

Inspect timing:

ros2 topic echo /atlas/time_offset/lidar

Power Health Observability​

Atlas extends system observability beyond timing.

In addition to /atlas/time_offset/*, Atlas exposes:

/atlas/power_health

This provides direct visibility into system power behavior inside ROS2.

Example Message​

vin_voltage: 24.1
v5_sys: 5.02
v5_usb: 5.01
v3v3: 3.30

vin_fault: false
v5_sys_fault: false

usb_ports:
  port1_enabled: true
  port1_fault: false
  port2_enabled: true
  port2_fault: false
  port3_enabled: true
  port3_fault: false

Why This Matters​

In most robotics systems:

  • power debugging requires on-site measurement
  • failures are difficult to reproduce
  • no software-level visibility exists

More importantly:

power instability is often the root cause of timing instability

But traditional systems cannot prove this.

What Atlas Enables​

Remote Debugging​

  • inspect voltage and faults remotely
  • diagnose field issues without physical access

Faster Bring-Up​

  • no multimeter required
  • voltage and fault data already available in ROS2

Cross-SKU Consistency​

  • same /atlas/power_health interface across all systems
  • reusable debugging workflows
  • no per-SKU custom instrumentation

Timing + Power Together​

Atlas exposes both dimensions:

  • /atlas/time_offset/* → timing truth
  • /atlas/power_health → power truth

This allows engineers to directly correlate:

timing instability ↔ power instability

Summary​

Power is no longer invisible hardware behavior.

It becomes:

observable, structured ROS2 data — aligned with time authority

Runtime Characteristics​

Atlas operates as a deterministic infrastructure layer with minimal overhead.

Message Frequency and Latency​

TopicTypical RateNotes
/atlas/pps1 HzPPS timing event
/atlas/syncEvent-drivenSync trigger
/imu/data100–400 HzSensor dependent
/gps/fix1–10 HzSensor dependent
/atlas/health1–5 HzSystem status

Performance

  • < 1 ms latency overhead
  • negligible jitter
  • < 2% CPU (Jetson Orin Nano)
  • < 20 MB memory

CPU Overhead​

Typical resource usage on Jetson Orin Nano:

  • < 2% CPU
  • < 20 MB memory

DSIL runs entirely in user-space, preserving compute resources for perception workloads.

Atlas Telemetry Channel​

Atlas communicates via USB CDC:

/dev/ttyACM0

Carries:

  • IMU data
  • GNSS data
  • PPS events
  • synchronization metadata
  • system health

DSIL ROS2 Node​

Example:

dsil_telemetry_node

Responsibilities:

  • decode telemetry stream
  • publish ROS2 messages
  • apply timestamp correction
  • expose sync events
  • monitor system health

TF2 and Coordinate Frames​

Atlas acts as the sensor aggregation reference frame.

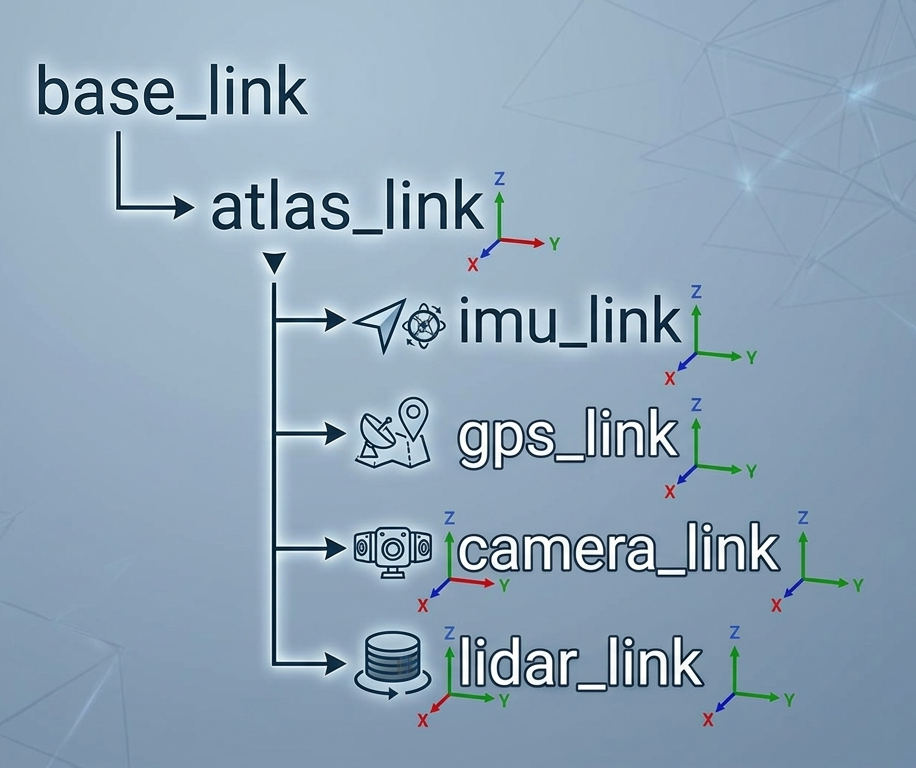

Atlas frame structure

Typical setup:

  • atlas_link as reference frame
  • sensors defined relative to Atlas

Supports:

  • TF2
  • URDF
  • static transforms

System Integration Overview​

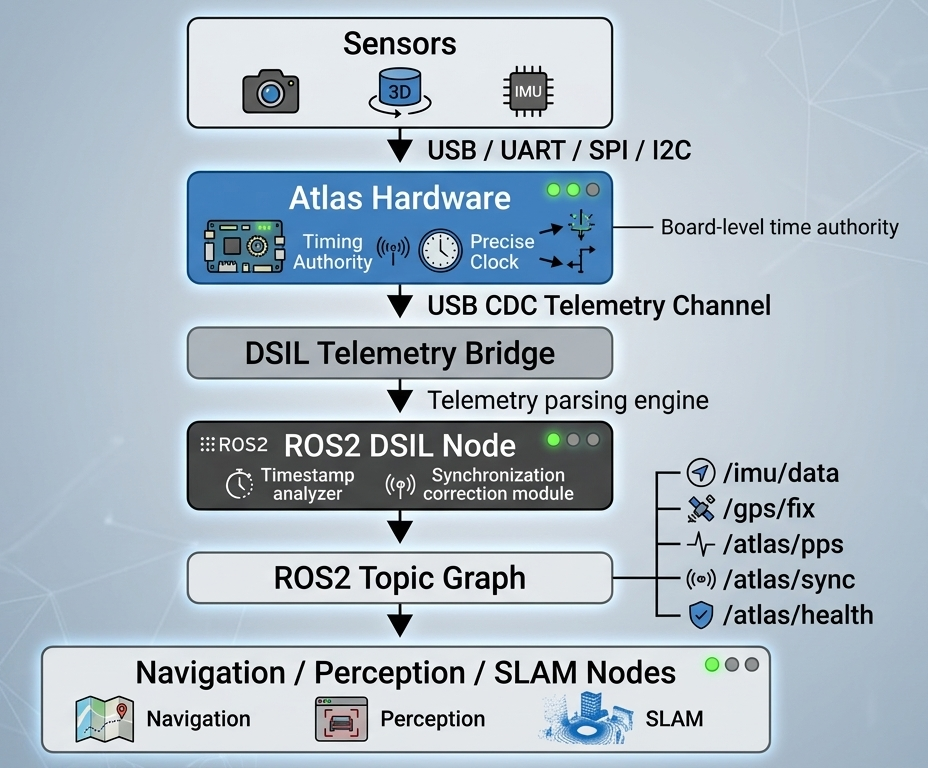

Atlas ROS2 Integration

Atlas introduces a deterministic timing boundary across the system.

Multi-Sensor Alignment​

Without Atlas​

  • drift across sensors
  • inconsistent timestamps
  • degraded fusion

With Atlas​

  • shared time authority
  • PPS alignment
  • deterministic timing

ROS2 Driver Compatibility​

Atlas works with existing drivers:

SensorDriver
USB Camerasusb_cam
Ouster LiDARouster_ros
Velodyne LiDARvelodyne_driver
IMUmicrostrain_inertial_driver

No driver changes required.

Minimal Integration Requirements​

  • Linux system
  • ROS2 installed
  • USB connection
  • DSIL SDK

No kernel modifications required.

Why ROS2 Engineers Adopt Atlas​

Without Atlas​

  • repeated integration effort
  • fragile synchronization
  • invisible timing errors
  • long debugging cycles

With Atlas​

  • deterministic sensor timing
  • observable system behavior
  • faster bring-up
  • reproducible results

Atlas converts:

custom integration → deployable infrastructure

System Boundary​

Atlas handles:​

  • sensor timing
  • synchronization
  • telemetry

Atlas does NOT handle:​

  • motor control
  • real-time actuation loops

Integration Principles​

Atlas is:

  • non-intrusive
  • deterministic
  • observable
  • tier-aware

This means:

  • drivers stay unchanged
  • time is corrected consistently
  • timing quality is explicit
  • engineers can trust the data

Why This Matters​

Engineers are not asking for “time authority”.

They are asking:

  • why fusion is unstable
  • why replay is inconsistent
  • why debugging takes days
  • why sensor swaps break behavior

Atlas provides a direct, measurable answer.

Summary​

Atlas does not replace ROS2.

It makes ROS2 sensor data:

deterministic, observable, and trustworthy

What Comes Next​

At this point, you have seen how Atlas:

  • defines a hardware timing boundary
  • converts timing into usable data
  • integrates into ROS2 systems

The next step is to evaluate Atlas in your own environment.
